Deluxe Stitcher
Swivel Style Heads
DELUXE STITCHER SWIVEL STYLE HEADS
26/26D Head
The 26/26D head is one of the most popular style heads in the world for both OEMs and end users alike. It is used in literally hundreds of collator applications, as well with a host of different stitcher machines.
Capacity: from 2 sheets up to 1/4" (6mm)
Crown Sizes: 5/16" (8mm), 3/8" (10mm), 1/2" (13mm) and 5/8" (16mm)
Wire Sizes: 23-28 round or 21x25 flat
Minimum Head Center: 1-7/8" (47.5mm)
Speed: 12,000 stitches per hour
Shipping Dimensions: 10" x 5" x 7" [25cm x 13cm x18cm]
Shipping Weight: 7 lbs. [3.2 kg]
Completely interchangeable with ISP/Interlake/Acme Champion Heads. All round wire heads come standard with our New Stronger Magnetic Swivel.

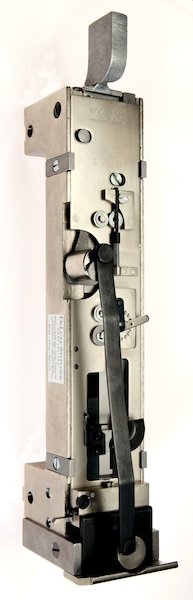

18D Head
The 18D Head is used predominantly by large printers because of its excellent reputation for reliability. The 18D is extremely versatile and handles a wide range of wire and crown sizes.
Capacity: from 2 sheets up to 9/16" (14mm)
Crown Sizes: 3/8" (10mm), 1/2" (13mm), 5/8" (16mm) and 3/4" (20mm)
Wire Sizes: 20-28 round and 19x21-1/2, 20x24, and 21x25 flat
Minimum Head Center: 3" (75mm)
Speed: 16,000 stitches per hour
Shipping Dimensions: 21" x 10" x 6" [54cm x 25cm x16cm]
Shipping Weight: 18 lbs. [8.2 kg]
Still the workhorse of the large saddle binderies of the world.
Magnatek Head
The Magnatek head is one of the most popular style heads in the world for both OEMs and end users alike. It is used in literally hundreds of collator applications, as well with a host of different stitcher machines.
Capacity: from 2 sheets up to 1/4" (6mm)
Crown Sizes: 5/16" (8mm), 3/8" (10mm), 1/2" (13mm)
Wire Sizes: 23-28 round or 21x25 flat
Minimum Head Center: 1-7/8" (47.5mm)
Speed: 12,000 stitches per hour
Shipping Dimensions: 10" x 5" x 7" [25cm x 13cm x18cm]
Shipping Weight: 7 lbs. [3.2 kg]
Completely interchangeable with ISP/Interlake/Acme Champion Heads. All round wire heads come standard with our New Stronger Magnetic Swivel.
M2000 Head
The M2000 head is one of the most popular style heads in the world for both OEMs and end users alike. It is used in literally hundreds of collator applications, as well with a host of different stitcher machines.
Capacity: from 2 sheets up to 1/4" (6mm)
Crown Sizes: 1/2" (13mm)
Wire Sizes: 22-28 round
Minimum Head Center: 1-7/8" (47.5mm)
Speed: 12,000 stitches per hour
Shipping Dimensions: 10" x 5" x 7" [25cm x 13cm x18cm]
Shipping Weight: 7 lbs. [3.2 kg]
Completely interchangeable with ISP/Interlake/Acme Champion Heads. All round wire heads come standard with our New Stronger Magnetic Swivel.
