Deluxe Stitcher
Light Duty Machines
LIGHT DUTY INDUSTRIAL STITCHING MACHINES
IMS/Mini-Stitcher
The IMS Stitcher is a table-top version of our StitchMaster and utilizes a smaller work area. With a capacity from 2 sheets to 1/4", the MiniStitcher is ideal for many versatile applications.
Capacity: from 2 sheets up to 1/8" [3mm]
Wire Sizes: 23-28 round or 21x25 flat
Electrical: 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz - CE Compliant
Throat Depth: 9"
Clinch: flat stitching and solid clinching only
Shipping Dimensions: 33" x 21" x 8" [84cm x 54cm x 21cm]
Shipping Weight: 55 lbs. [25 kg]
Deluxe Stitcher Ministitcher machine used to make N95 face masks, dust masks, face shields and other PPE. Our simple and versatile machine can staple many different applications and can generate up to 50,000 staples per spool of wire.
Perfect for carding, blister packs and padded envelopes. All round wire machines come standard with our New Stronger Magnetic Swivel.

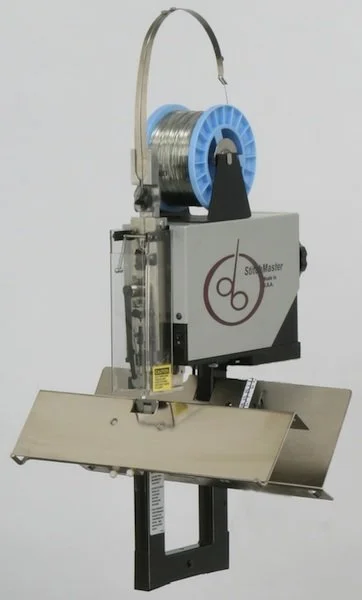

Stitchmaster
The StitchMaster is quiet, fast, dependable and inexpensive - ideally suited for small print shops. It is designed to be clamped to any work table or to a floor stand, available separately. Two StitchMasters can be connected to form a two-headed machine.
Capacity: from 2 sheets up to 1/4" [6mm]
Wire Sizes: 23-28 round or 21x25 flat (Standard is 25ga round wire)
Electrical: 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz CE Compliant
Throat Depth: 9"
Clinch: flat and saddle stitching, moveable clinch (solid clinch available)
Shipping Dimensions: 33" x 21" x 8" [84cm x 54cm x 21cm]
Shipping Weight: 55 lbs. [25 kg]

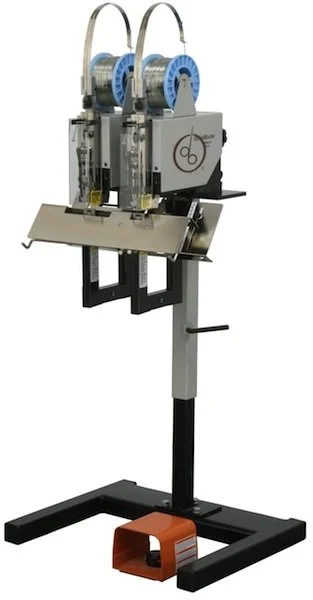

Dual Stitchmaster
The ideal for the smaller print shop, the Dual StitchMaster is portable and powerful. This stitcher has a thickness capacity of 1/4" (6mm) and accommodate 23 through 28 gauge wire. The Dual StitchMaster's convertible table supports both flat and saddle stitching providing, solutions for varied saddle stitching needs.
The Dual StitchMaster comes with the adjustable Floor Stand or can be clamped to any solid work surface for truly portable stitching capabilities.
Capacity: from 2 sheets up to 1/4" [6mm]
Wire Sizes: 23-28 round or 21x25 flat
Electrical: 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz - CE Compliant
Throat Depth: 9"
Clinch: flat and saddle stitching, moveable clinch (solid clinch available)
Shipping Dimensions: 33" x 21" x 8" [84cm x 54cm x 21cm]
Shipping Weight: 55 lbs. [25 kg]
