METAL STITCHING MACHINE
S2F8
A model for every purpose Features which assure perfect stapling and superior machine performance are found in every stapler.
All parts are manufactured to rigid specifications for smoothest possible operation, long life and perfect interchangeability.
Many operating parts can be reversed to double service life.
Quiet operation.
Low maintenance.
Models are offered for virtually every purpose: for floor or bench mounting, for integration into other basic production line machinery, and for specially-engineered equipment.
Standard Height Of Machine Stitch To Floor - 42-1/2" (108cm)
Standard Height Of Machine Over All - 67-1/2" (172 cm)
Floor Space Over All - 34" (86 cm) x 19-1/2" (50 cm)
Net Weight - 440 LBS (200 Kgs)
Crated Weight - 540 LBS (246 Kgs)
Gap Clearance Between Stapling Head And Top Of Work - 1-7/16" (3.6 cm)
Width Of Staple Measured Between Legs Of Staple - 7/16" (11 mm)
Wire Size - #17, #18, #20 (1.37mm, 1.1mm, 0.9mm)
Motor Size - 1/3 HP
Mechanical Operating Speed - 275 stitch/min

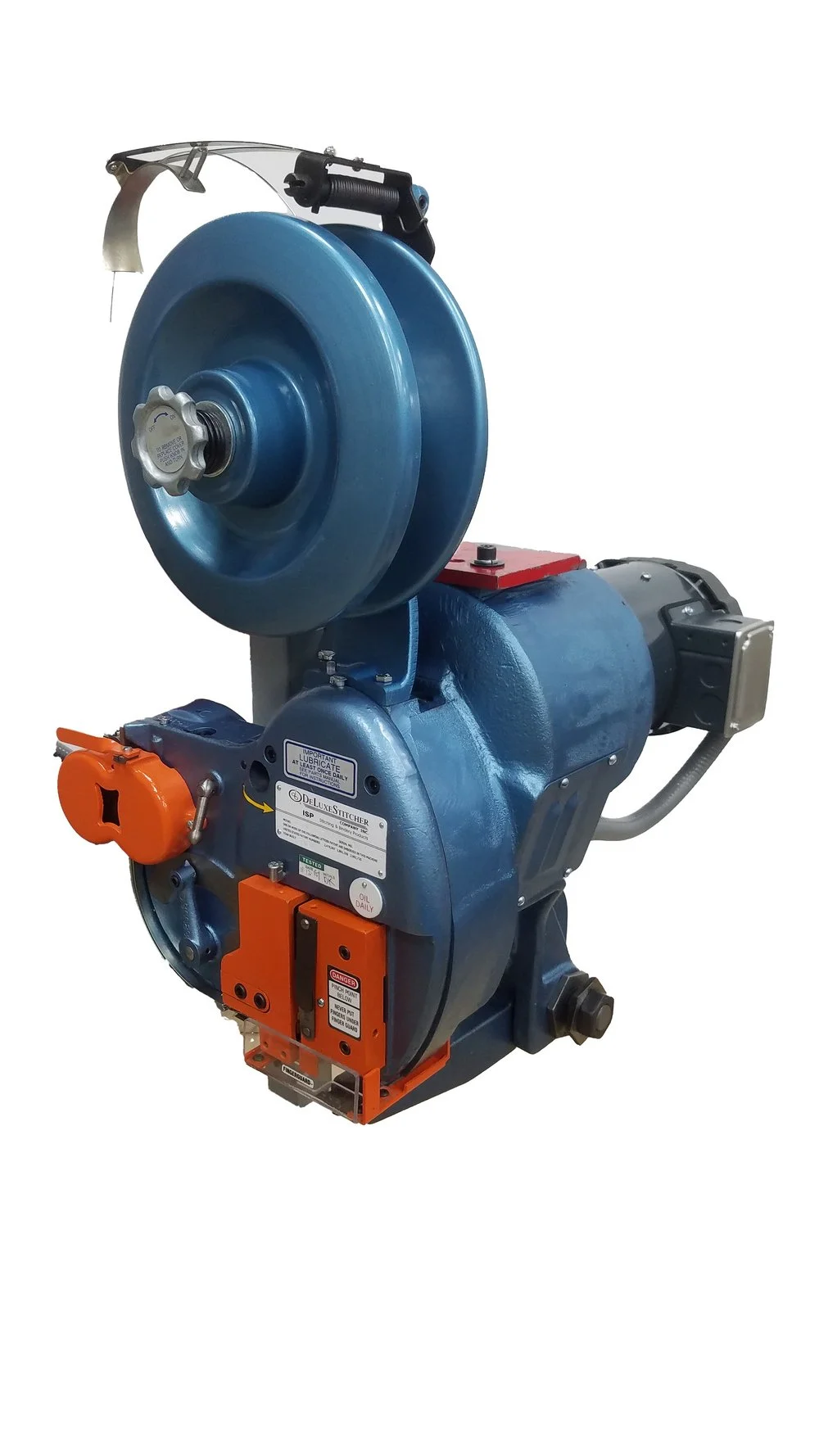

S2PO
The perfect machine for any automation application. The S2PO can be run either by a control box (sold separately) or by your PLC controller. The S2PO allows installation into your system via 4 mounting holes (top or bottom of frame) in any orientation.
Standard Height to top of wire spool - 32" (82cm)
Standard Width Of Machine - 24" (61cm)
Net Weight - 110 LBS (50kgs)
Crated Weight - 175 LBS (80kgs)
Gap Clearance Between Stapling Head And Top Of Work - 1-7/16" (36.5mm)
Width Of Staple Measured Between Legs Of Staple - 7/16" (11mm)
Wire Size - #17, #18, #20 (18ga XXX Carbon is standard)
Motor Size - 1/3 HP
Mechanical Operating Speed - 275 stitch/min
